Asus GeForce RTX 5080 Noctua Edition review: Silent running

Asus and Noctua have been collaborating on ultra-quiet graphics cards for some time now by pairing Noctua’s most advanced 120mm fans with massive custom heatsinks. That collaboration has continued in the Blackwell generation with the Asus RTX 5080 Noctua Edition, an absolutely ginormous air-cooled graphics card that promises no-compromises performance and temperatures alongside the lowest possible noise levels. That’s an exceedingly high bar to clear in one product.

Making air-cooled computer hardware quieter is simple enough, in theory. Improve thermal transfer by adding a vapor chamber or heat pipes to the base plate of a heatsink, increase its surface area by adding more and larger fins to the fin stack, and take advantage of the improved heat dissipation by slowing down the fans cooling said heatsink. Eventually, you get imperceptible noise levels. Easy enough, right?

In practice, this recipe runs into all sorts of obstacles. Cases can only accept so large a heatsink without running into clearance issues. Sockets, slots, and PCBs can only take so much weight before they start to deform. The heatsink itself can only be so costly as part of the overall bill of materials. If you’re an engineer designing a typical graphics card for the typical PC, you have to balance all these concerns, and louder, faster-spinning fans on a smaller heatsink are typically one result of those tradeoffs.

The Asus GeForce RTX 5080 Noctua Edition embraces an entirely different set of constraints. This graphics card is all about low noise levels, and the two companies have spared no effort or expense in making the quietest possible GPU air cooler out there, size and weight be damned.

We’ve had the pleasure of reviewing some of Asus’s Noctua Edition cards in the past, and they’ve certainly provided both impressive noise levels and thermal performance. But this RTX 5080 marks the first time the duo has deployed three such fans on a Noctua Edition graphics card: in this case, NF-A12x25 G2s. As someone who got his start as a case and heatsink reviewer many moons ago, those fans immediately stand out as something different.

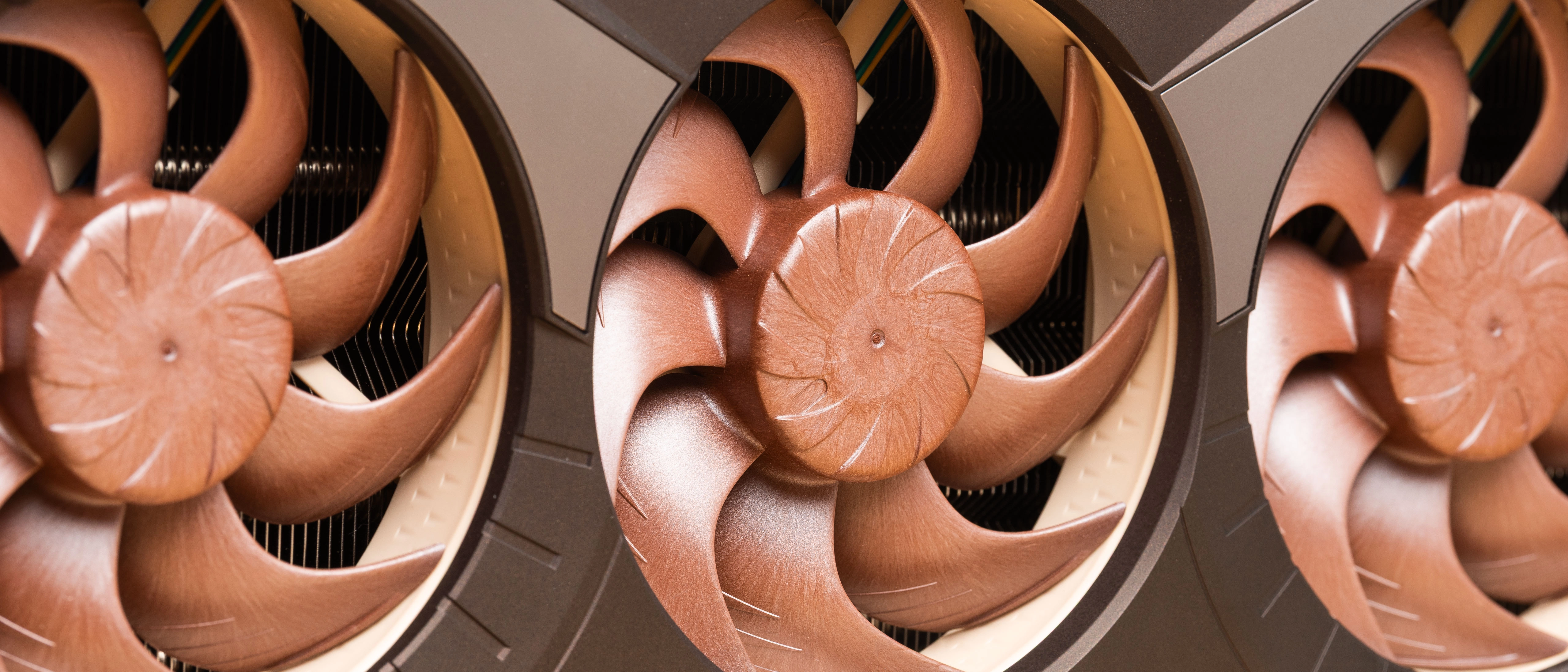

The NF-A12x25 G2s boast a list of engineering refinements that would make an aeronautical engineer blush. Everything from the curvature of each blade to the ridges on the fan hub to the winglets at each blade tip is said to be optimized to improve the distribution and evenness of airflow with typical Noctua obsessiveness. The impellers (or rotors) themselves sit so close to the fan frame that trying to slide a sheet of printer paper between them will make the impeller move. Crazy stuff.

To further refine the noise character of the card, Noctua has supplied Asus with two types of NF-A12x25 G2 fans, one of which runs slightly slower and the other of which runs slightly faster than the other. Noctua says this avoids “periodic humming or vibrations caused by beat frequencies.”

The fans are paired with a custom heatsink that pairs a vapor-chamber baseplate with 11 heat pipes running through a 14.5” long fin stack, which is certainly plenty of metal. But not all of the card’s four-slot height is dedicated to fins and heat pipes. About two slots are occupied by the full-size NF-A12x25 G2 fans themselves.

We didn’t take our Noctua Edition apart because it’s a loaner, but we can see that the huge vapor chamber at the base of the heatsink covers both the GPU itself and the GDDR7 memory that rings it for a complete thermal solution. The VRM power phases and inductors are also joined to the fin stack with their own metal contact plate and thermal pads.

All told, this is one of the largest and heaviest air-cooled graphics cards I’ve ever handled, weighing in at a whopping 5.9 lb (2.7 kg). It absolutely dwarfs the RTX 5080 Founders Edition.

For all its focus on quiet operation, the design of the RTX 5080 Noctua Edition is inescapably polarizing. The plastic fan shroud and metal backplate are all finished in a muted brown color with a subtle sparkle that only reveals itself under direct lighting. The NF-A12x25 G2 fans themselves are the brown-and-tan models that Noctua obsessives will love and the uninitiated may hate. I think it’s great, but other 3DTested staffers can’t stand it.

The Noctua faithful will find plenty of subtle nods to its brand on this 5080, and these touches are all done with the same subtlety and attention to detail typical of other Noctua products. Metallic accents on the face of the card suggest wings or eyebrows, and the flow-through cutout on the backplate borrows one half of Noctua’s owl logo.

The painted stripes on the backplate that suggest stampings or embossing are so well done that they made me do a double-take to ensure they weren’t actually part of the metal.

All told, this card will look fan-tastic in a Noctua-themed build, but many will be left wishing for a Chromax model that’s dressed entirely in black for better coordination in the average PC. Maybe a future Noctua Edition can cover both bases, but for now, brown is all you get.

Let's take a look at performance, power, and thermals on the following pages.
