Seagate FireCuda 530R 2TB SSD Review: A stealthy workstation powerhouse

Looking for a good workstation SSD? Seagate apparently asked the same question of the market when it decided to design the FireCuda 530R. It’s a twist on the original FireCuda 530, which uses the same controller, with a bigger emphasis on reliability. As it so turns out, the drive does deliver, and it’s no slouch for gaming or everyday tasks, either. It’s also fast enough to hold you over until the consumer SSD market recovers.

Seagate is no newcomer to reliable drives. The company has spent a lot of time working on its mechanical hard drives, offering three years of data recovery services for the best models. This also applies to some of its SSDs, and that list includes the 530R. It’s usually tough to recover data from a dead SSD, but if the data hasn’t been overwritten – and in most cases, drive failures happen in a way that doesn’t involve the flash or data directly – it’s possible it can be salvaged. That alone is a big selling point for this drive, but Seagate also offers exceptional TBW endurance limits at all capacities. The drive also works with the excellent SeaTools 5 diagnostic software. To put it simply, this drive is designed to last or at least give you perceived peace of mind.

There is a caveat or two with that, though. The drive’s controller – Phison’s E18 – had a string of bad luck with an alleged Microsoft Windows update gone wrong, which actually doesn’t apply to the 530R but might get attached in searches. This controller also had a stale data bug discovered late in the controller’s lifetime, a problem since many manufacturers decided not to patch the firmware. In both cases, these are Phison issues, and Seagate has generally been pretty alert about these things. It was one of the few manufacturers to work with Phison’s I/O+ DirectStorage-optimized firmware, so we know the company is proactive. We want to make sure to get out ahead of that in this review because, contrary to anything those events might suggest, this is actually a drive made for enthusiasts who value reliability and consistent performance.

Seagate FireCuda 530R Specifications

The Seagate FireCuda 530R, not to be confused with the earlier FireCuda 530, is available at 1TB, 2TB, and 4TB. It lacks the 8TB SKU of its predecessor. At the time of review, it’s priced at $175.74, $237.49, and $427.49. This makes it an exceptional deal at any capacity, as it has DRAM and its prices rival inferior DRAM-less options like the TeamGroup MP44. It’s best at 2TB and 4TB, if you can find it, but even the price at 1TB is quite good.

This drive is rated for up to 7,400 / 7,000 MB/s for sequential reads and writes and up to 1,300K / 1,300K random read and write IOPS. These specifications are a little odd because write performance goes down with capacity, and the IOPS are identical for reads and writes across all SKUs. We would expect the 2TB SKU to provide peak performance. However, this doesn’t really matter much as the performance is good at any capacity.

The main thing that stands out is the IOPS, which are considerably higher than other drives with the Phison E18 controller, including Seagate’s older drives, which, along with the other performance specifications suggests this is an enthusiast or workstation drive. It’s worth emphasizing this because at first glance it’s easy to confuse this drive as some sort of FireCuda 530 successor when it’s more of a specialized variant. The IOPS rating makes this more apparent, but the specs across the entire capacity range reinforce that this isn’t a budget drive.

Also unusual is Seagate’s warranty for the drive. While the five-year duration is typical, the rated write endurance is not. The TBW endurance ranges from 1,100 to 1262.5 of data writes per TB of capacity, which is roughly double that of other drives. If you’re having flashbacks to the FireCuda 520, which had very high TBW, you’re not alone. Seagate’s original FireCuda 530 also had high TBW, but we have to take the competition into consideration – that is, TBW is relative to other drives on the market. The 530R is in a good place here. Seagate also bundles a 3-year Rescue Services, or Rescue Data Recovery Services to be precise, warranty with the drive, which is exceptional for extra peace of mind.

We noted in recent Seagate SSD reviews, like for the FireCuda 540, that Seagate has done a good job with documentation and also with making drives that feel good for workstations and heavy use. Usually, you want high TBW with these use cases, which makes the 530R potentially interesting for enthusiasts. That said, the 530R has a mixed reputation in the community, and it uses less common flash. This reputation is based partially on Phison’s E18 stale data read bug – essentially, read latency could sometimes spike on older data, which is fixed in newer firmware offered by some manufacturers, including Seagate. Another problem was a supposed Windows Update bug, which ended up going down a winding path to the truth, which could cause data corruption. This also should not be a factor with the 530R today, but certainly, these mixed signals can create some anxiety.

That said, the drive’s older hardware is more of a peak performance or power efficiency problem than an endurance one. The 530R has been optimized for massive writes and heavy use cases, as previously stated. But it’s worth reviewing the drive’s performance consistency – especially with sustained writes – before making a judgment call. Secondary to this would be power efficiency, but that tends to be less of a concern for power users.

Seagate FireCuda 530R: A Closer Look

Image 1 of 4

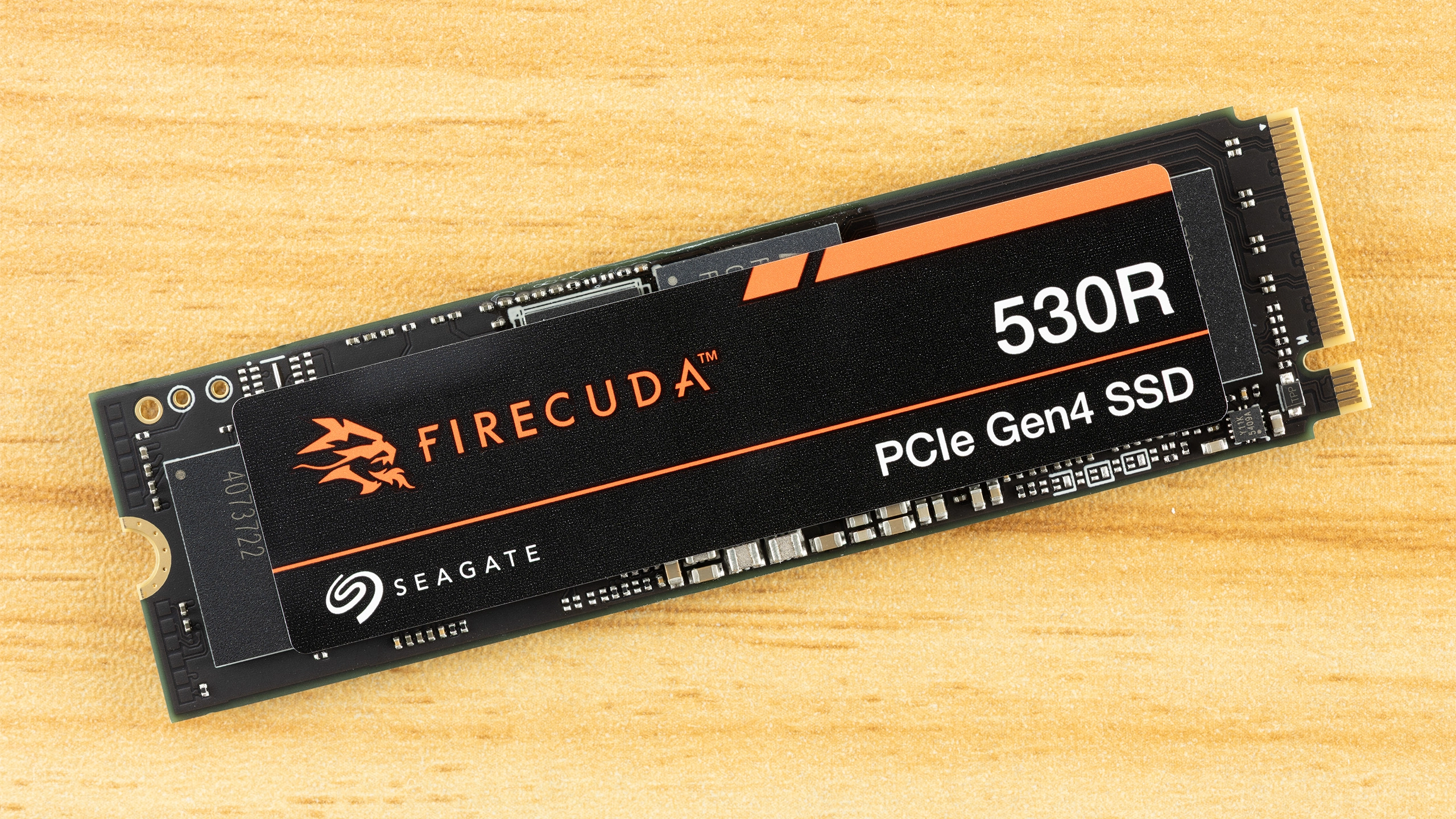

The Seagate FireCuda 530R can come both with and without a heatsink. We’re lucky enough to have both for review. The drive is rated for 3.3V / 3.0A or ~9.9W, which matches our expectations – Seagate’s average load rating for the 4TB SKU is 8.9W, and our sample peaks at 8.8W from the SMART information. This is relatively high compared to what we expect from newer hardware – controllers and flash have both gotten more efficient – but is well within a tolerable envelope.

We would recommend a heatsink, whether the one you can get with the drive or some other solution. Make sure you get one that can handle a double-sided drive, and if you’re using the drive bare in a laptop, make sure that laptop doesn’t require a single-sided solution. As for the bundled heatsink, we’ve reviewed it before on a Phison E18-equipped drive. See our Seagate PS5 Game Drive review for more.

Image 1 of 4

This is a double-sided drive with an SSD controller, two DRAM packages for cache memory, and eight NAND flash packages. The controller is the Phison E18, which we’ve come to know well over the years. It has eight flash channels and DRAM for the best performance. The DRAM is SK hynix H5AN8GNDJR-XNC, which is 8Gb, or 1GB, of 16-bit DDR4, making for a total of 2GB. This matches the optimal 1GB:1TB DRAM:NAND capacity ratio.

The flash is Kioxia 162-Layer BiCS6 TLC using smaller 512Gb, or 64GB, NAND dies. This means four dies per 2Tb package for a total of thirty-two dies. This is an optimal amount as performance peaks at around four dies per plane. Further, this is a four-plane flash variant that increases throughput with a higher level of parallelization. This is a very good choice if you’re building a workstation drive, and Seagate has not skimped anywhere that we can see. We don’t have the 4TB to test, but it’s possible the 1Tb die variant could be used there, but the impact is not significant as it would have the same die count as we do here. For those curious, this is not enterprise or eTLC with additional endurance, but neither is it lower-grade flash that’s passed on to the consumer. It’s rated for the full 3,000 program-erase cycles.
