Asus ProArt PA32KCX 32-inch 8K professional monitor review: A reference for color, pixel density, and brightness

Asus leads the way with its reference standard ProArt PA32KCX.

Reviews
By published
Asus ProArt PA32KCX
Editor's Choice
(Image: © 3DTested)

Why you can trust 3DTested Our expert reviewers spend hours testing and comparing products and services so you can choose the best for you. Find out more about how we test.

To verify the PA32KCX’s factory calibration, I measured the modes that will be most used, Native, P3 (cinema and display), sRGB, Adobe RGB, BT.709, and BT.2020. At the end of this page, there’s a summary of all the test results for each mode.

Grayscale and Gamma Tracking

Image 1 of 7
Asus ProArt PA32KCX
(Image credit: Portrait Displays Calman)

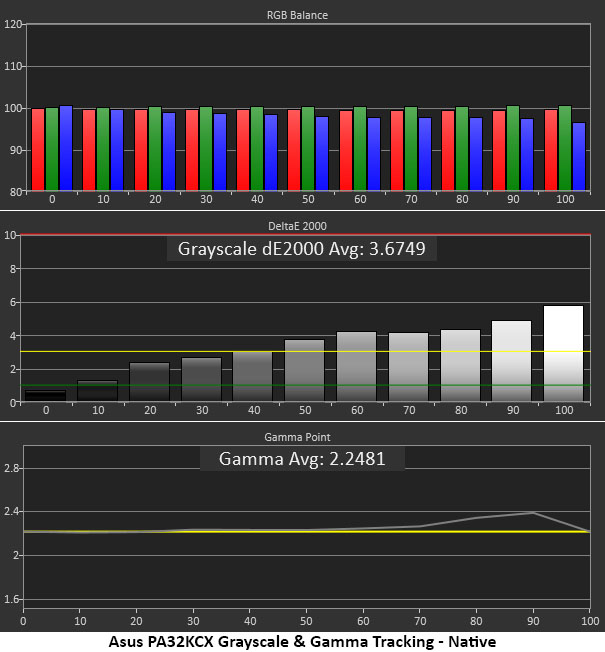

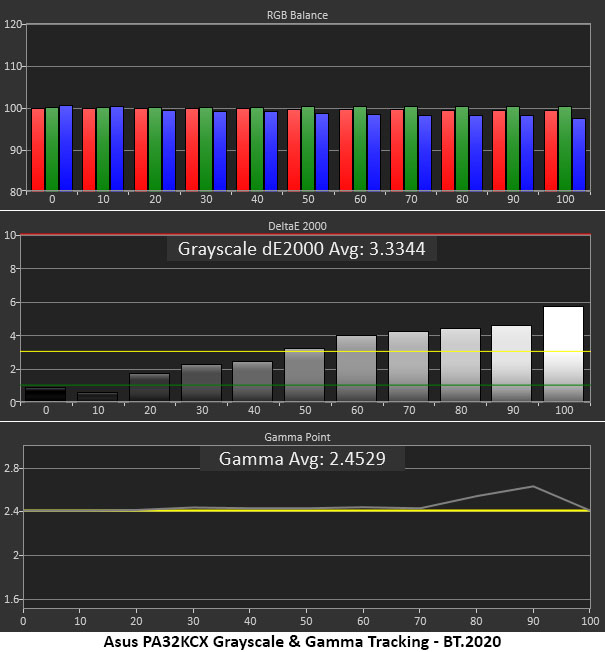

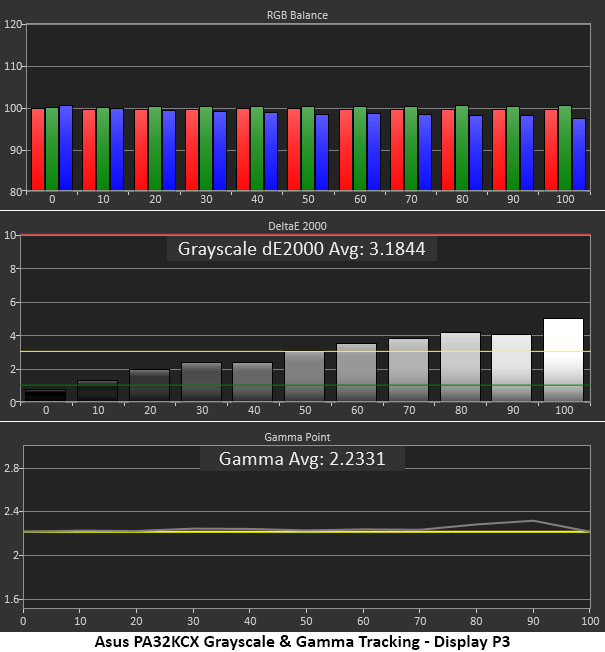

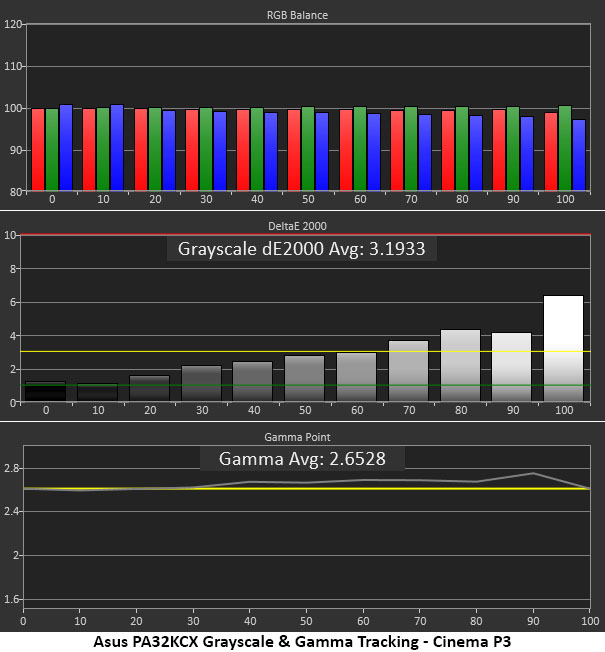

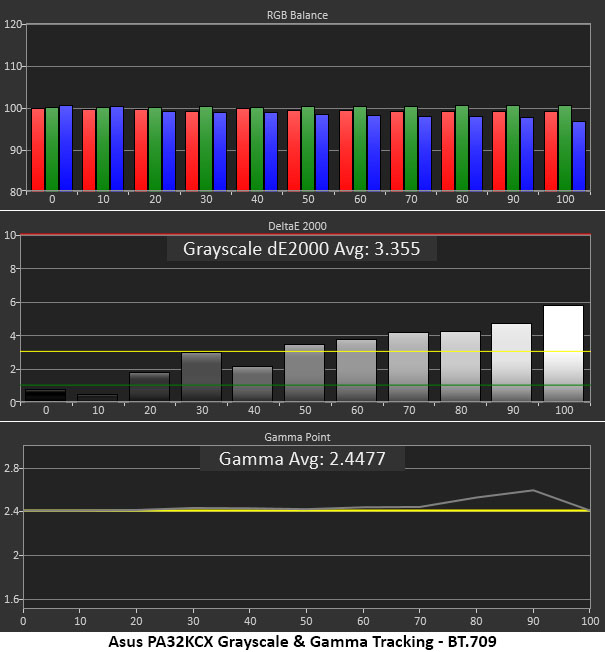

The PA32KCX isn’t perfect out of the box, but it comes close. You can see that the grayscale and gamma charts are consistent across modes. There are slight green errors at brightness levels over 50%, and there’s a bump in gamma (too dark) at 80-90% brightness. These errors can be fixed using the built-in colorimeter in about 20 minutes per mode.

I noted that the PA32KCX used the correct gamma and color temp values for each mode. SRGB uses 2.2 power and D65, Adobe RGB uses 2.2 power and D65, BT.2020 (SDR) uses 2.4 power and D65, P3 uses 2.2 power and D65 for Display and 2.6 power and D63 for Cinema, and BT.709 uses 2.4 power and D65.

Color Gamut Accuracy

Our color gamut and volume testing use Portrait Displays’ Calman software. For details on our color gamut testing and volume calculations, click here.

Image 1 of 7
Asus ProArt PA32KCX
(Image credit: Portrait Displays Calman)

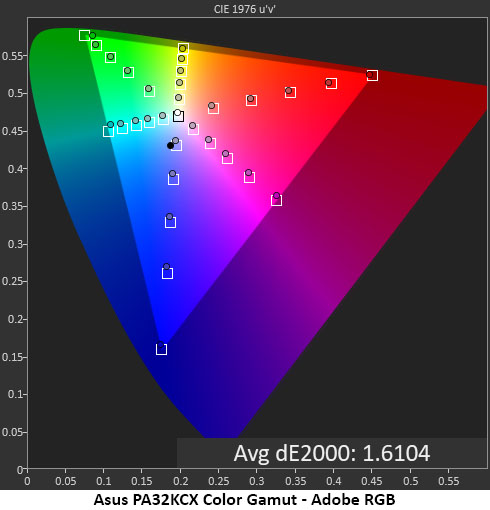

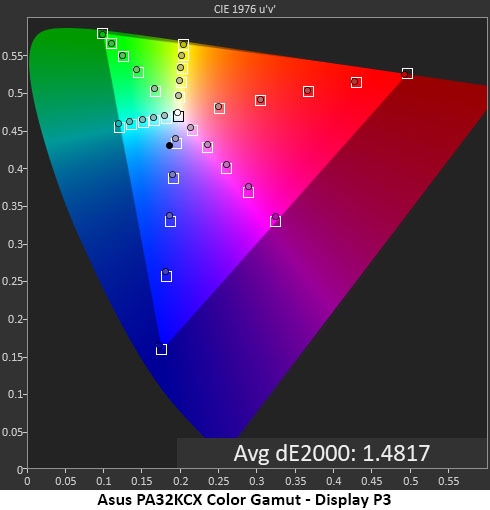

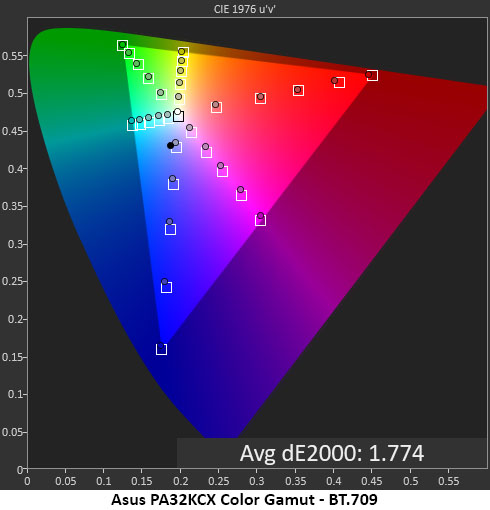

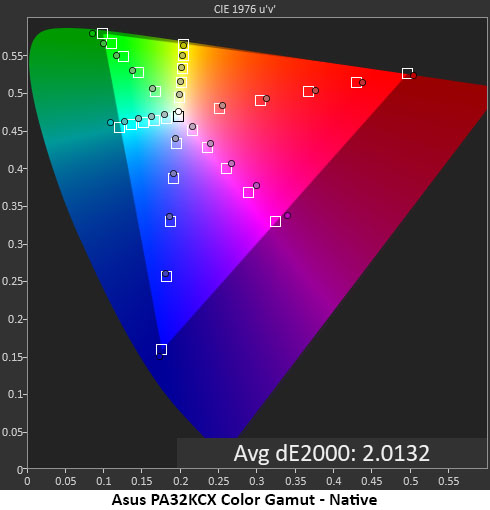

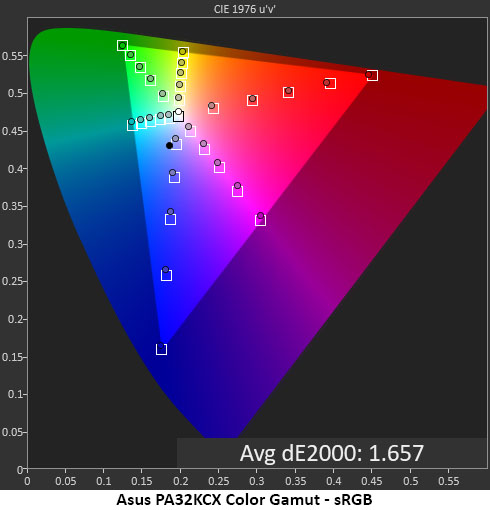

In the gamut tests, the PA32KCX measures with no visible errors in any of its modes. Native uses the full gamut, covering 110% of P3. There are slight hue errors in cyan and magenta with general oversaturation. The other gamuts are spot-on except for Adobe RGB, which has a slight cyan hue error. BT.2020 covers the inner points correctly before running out of color at 85% red, 75% green, and 95% blue.

Grayscale, Gamma and Color Gamut Test Summary

Here are the grayscale, gamma, and gamut results in a summary table. Error values are referenced to the Delta E 2000 spec. Gamma range refers to the difference between the highest and lowest value. Gamma Average is the percentage deviation from the standard for each color mode.

Swipe to scroll horizontally
Row 0 - Cell 0

Grayscale Error

Gamma Range

Gamma Average

Gamma Actual

Gamut Error

Gamut Volume

Native

3.67dE

0.24

2.27%

2.25

2.01dE

109.37%

sRGB

2.93dE

0.18

0.91%

2.22

1.68dE

99.58%

Adobe RGB

3.13dE

0.26

2.73%

2.26

1.61dE

94.08%

BT.2020

3.33dE

0.22

2.08%

2.45

2.14dE

77.59%

Display P3

3.18dE

0.10

1.36%

2.23

1.48dE

97.32%

Cinema P3

3.19dE

0.16

2.27%

2.65

1.67dE

97.37%

BT.709

3.36dE

0.18

2.08%

2.45

1.77dE

100.34%

Test Takeaway: The PA32KCX has excellent color gamut accuracy out of the box. There are slight green errors in the grayscale runs and gamma has a consistent error where it is too dark at the 80-90% steps. These errors can be fixed using the OSD, the built-in meter, Calman Autocal or Light Illusion ColourSpace. I tested an early production sample, so it is possible that you will have slightly better results. I noted the improvement in gamut volume from the non-Quantum Dot ProArt displays I’ve tested. I have no complaints here.

MORE: Best Gaming Monitors

MORE: How We Test PC Monitors

MORE: How to Buy a PC Monitor
