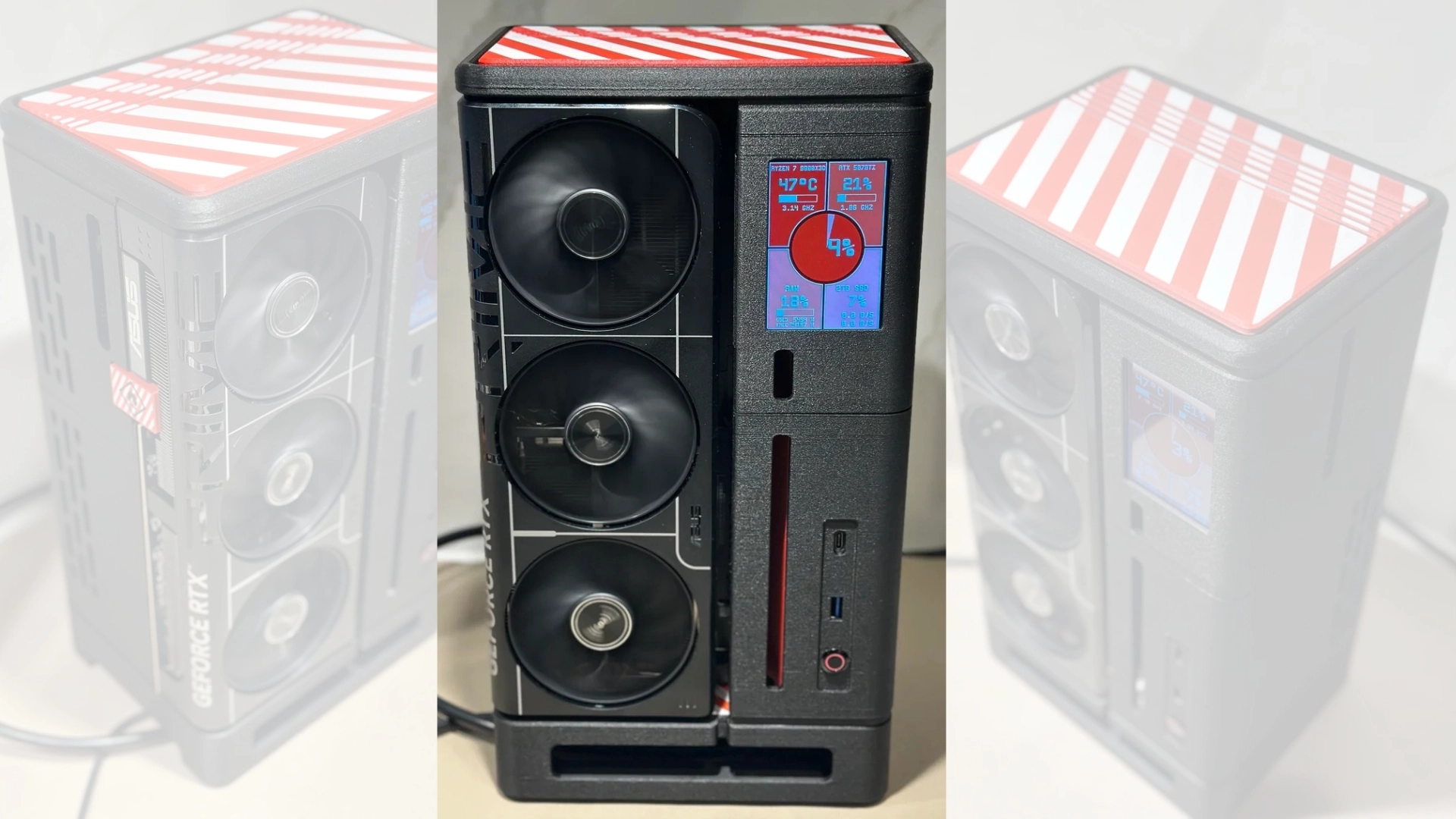

A maker just shared their custom 3D-printed SFF case based on the discontinued Xikii FF04, a sub-10-liter case that integrates an Asus Pro Art RTX 4080 Super. Redditor u/AudiblyTacit showcased their build in the r/sffpc subreddit, stating that they had heavily modified the design to accommodate their updated hardware and calling it FF04MOD Block I. The custom SFF case now features a more recent Asus RTX 5070 Ti Prime OC and the AMD Ryzen 7 9800X3D, which remains one of AMD’s most potent gaming chips.
U/AudiblyTacit said they based their custom build on a 3D-printed model from another user, then heavily modified it for their hardware, aesthetics, and performance. For example, they modified the lid to add a vent with a magnetic mesh screen to improve airflow, and changed its color from the usual single-color black or gray found in most PC builds to alternating red-and-white diagonal stripes. They also added a similar design to the GPU power adapter, but this time incorporating a flammable warning as a nod to the melting power adapters that have affected several modern high-powered GPUs.
Update: So worth the effort – promised more photos + performance update from r/sffpc
The final 3D-printed case measures 8.75 x 5.75 x 14.5 inches. Although it has a similar depth and height to the original FF04 design, it’s about an inch and a half wider to accommodate the chunkier RTX 5070 Ti. This also increases the total volume to 11.9 liters (up from the original’s 9.8 liters). Additionally, the Redditor added a small external monitor to monitor the system.
Although you can see some of the tell-tale signs of 3D printing on the build, it’s still one of the cleanest custom SFF PC cases you can find on the internet (but if you don’t have the patience for making your own, you should check out our best mini-ITX cases). The Redditor also showed how many iterations it took to reach the final design, with one image showing around five external cases, plus several other 3D-printed parts. They also said they used Polymaker HT PLA GF for better strength and print quality.
These are the complete specs of the entire PC build and the cost:
Part | Item | Cost |
|---|---|---|
CPU | AMD Ryzen 7 9800X3D | $449.99 |
GPU | Asus RTX 5070 Ti Prime OC | $809.00 |
Motherboard | MSI B650I Edge WiFi | $209.00 |
Memory | KLEVV Bolt V 32GB (2x16GB) DDR-6000 CL30 | $345.00 |
Storage | Crucial P510 2TB | $209.00 |
PSU | Corsair SF850 Platinum | $178.99 |
CPU Cooler | Thermalright AXP120 | $29.90 |
AM5 Frame | Thermalright CPU Frame | $9.99 |
Thermal Pad | Thermal Grizzly KryoSheet | $24.99 |
PCIe Riser | Linkup PCIe 5.0 x16 | $90.00 |
GPU Power Adapter | 12VHPWR angled adapter | $19.99 |
WiFi Antennas | FlyFishRC Stubby RP-SMA antennas | $19.47 |
Total | - | $2,396.31 |
Despite being an SFF, the custom SFF case delivered stellar performance. GPU temperatures hovered around 69-70 degrees Celsius at 98% utilization, which is to be expected given its open design. As for the CPU, it stayed around 60 degrees Celsius, and neither component showed any signs of throttling or instability. The build also received the following scores in several tests - Speed Way: 7,717 at around 77 FPS; Port Royal: 14,344 at around 66 FPS; and Steel Nomad: 6,811 at around 68 FPS.
The system is currently running stock, so the builder said they’re open to advice on AM5 BIOS tuning, X3D optimization, memory tuning, PBO or undervolting, and other SFF optimizations. At the same time, they said that they’re just cleaning up the 3D files and will eventually share them online.
